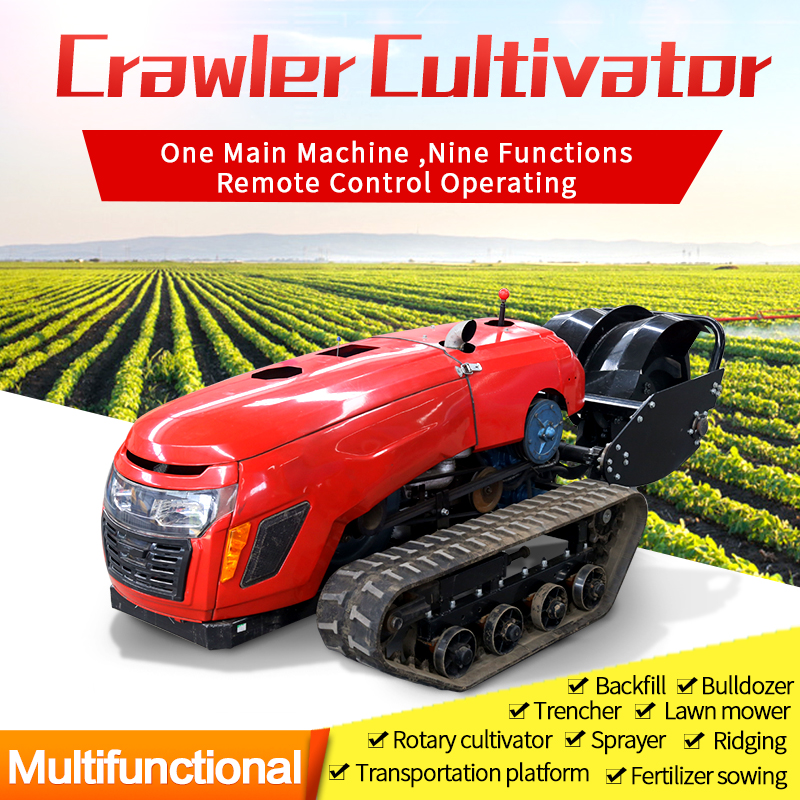

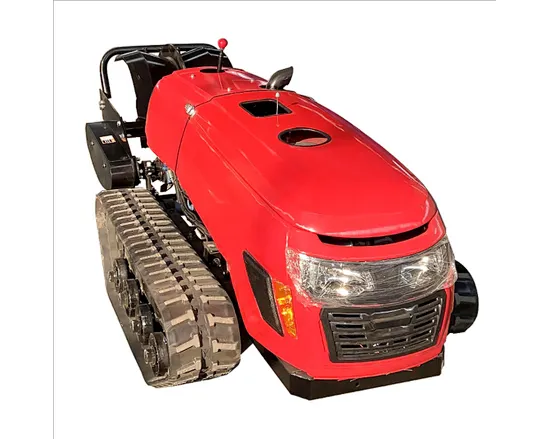

new designed agricultural machinery and equipment remote control mini crawler cultivator for sale
Machine ,Cultivator Trencher +Lawn Mower +Backfill + Fertilizer
1 set
Quantity:
$180.00 - $3456.00
/ set
- Machine Type:Disc Harrow
- Power Type:Diesel
- Type:Farm Cultivator
- Condition:New
- Warranty:2 years
- Place of Origin:China
- Weight:850 KG
- Key Selling Points:High Productivity
- Marketing Type:New Product 2021
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:3 years
- Core Components:Motor, Pressure vessel, Pump, Engine, Gearbox
- Applicable Industries:Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Energy & Mining, Food & Beverage Shops, Advertising Company
- Showroom Location:None
- Product Name:Mini Tiller Cultivator Power Tillers
- Name:Agriculture Machinery Tractor Rotary Tiller
- Usage:Farm Tilling
- Engine type:Diesel Engine
- Color:Optional
- Item:Rotary Cultivator Tiller
- Keywords:Mini Land Cultivation Machine
- Transmission:Gear Drive
- Application:Farm Garden
- Product Type:Agricultural Farm Machinery Plough
Product Overview
Easy and quick installation biogas digester
Product Description

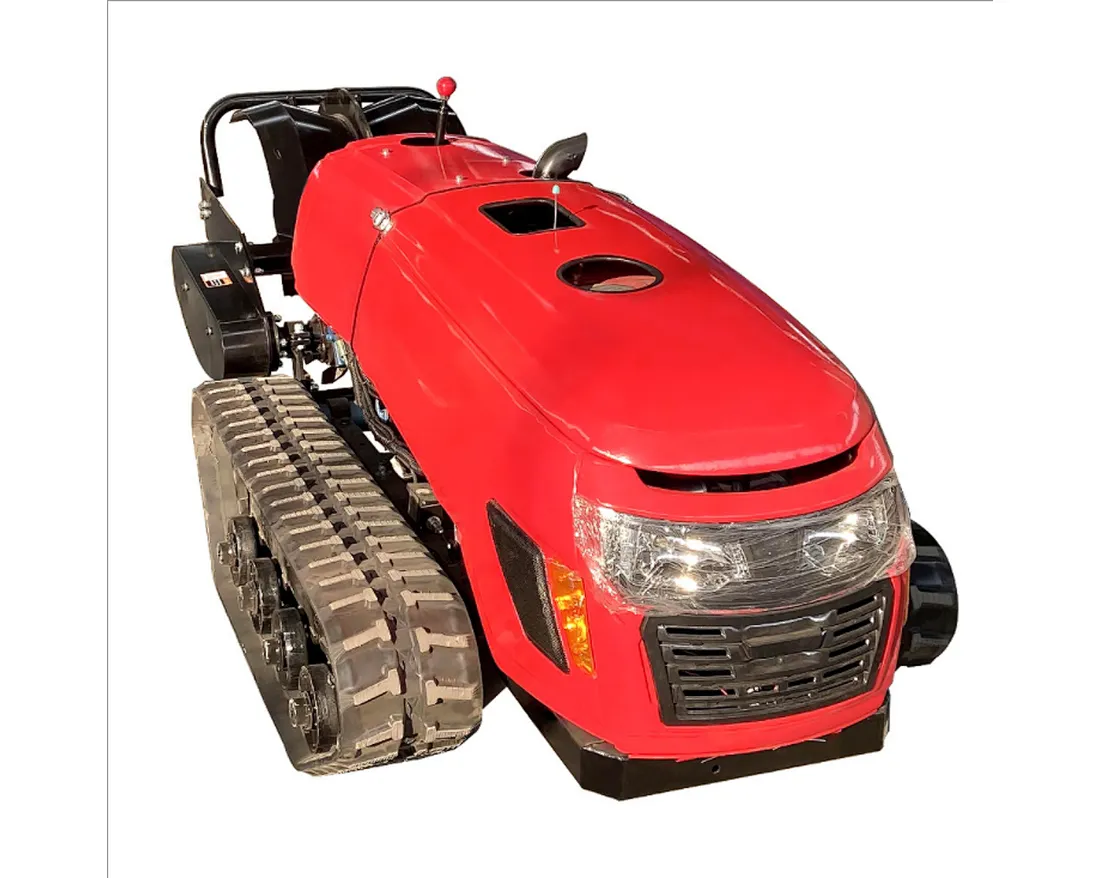

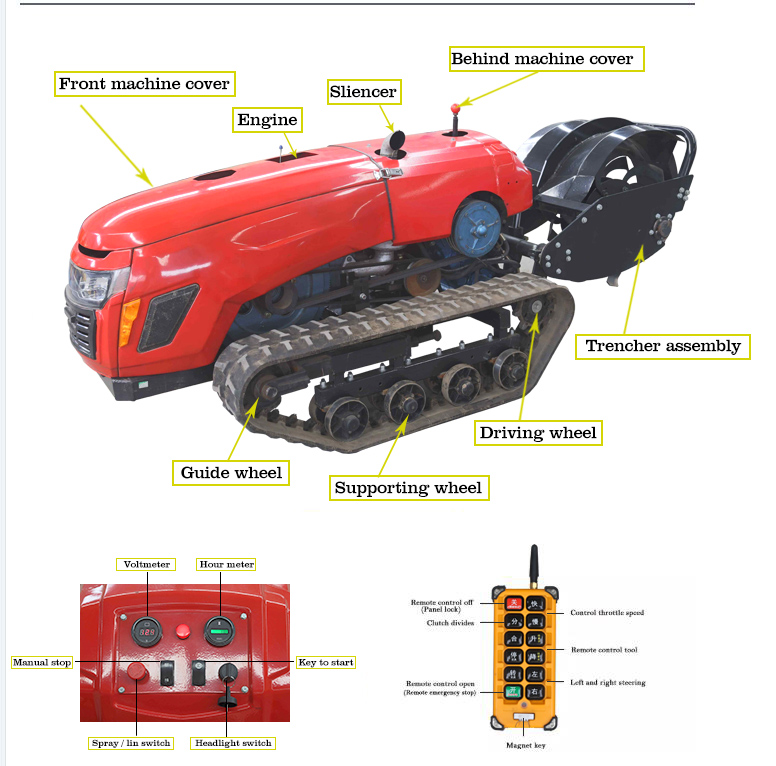

Crawler Cultivator Main Machine | ||||||||||

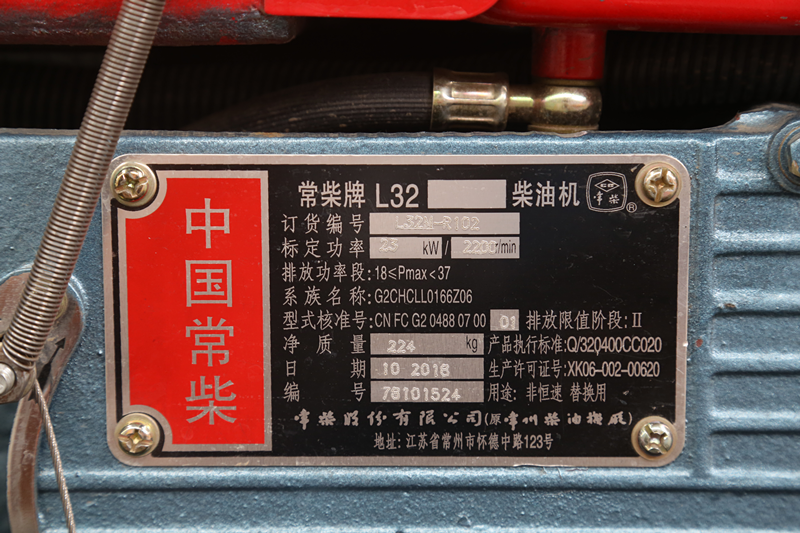

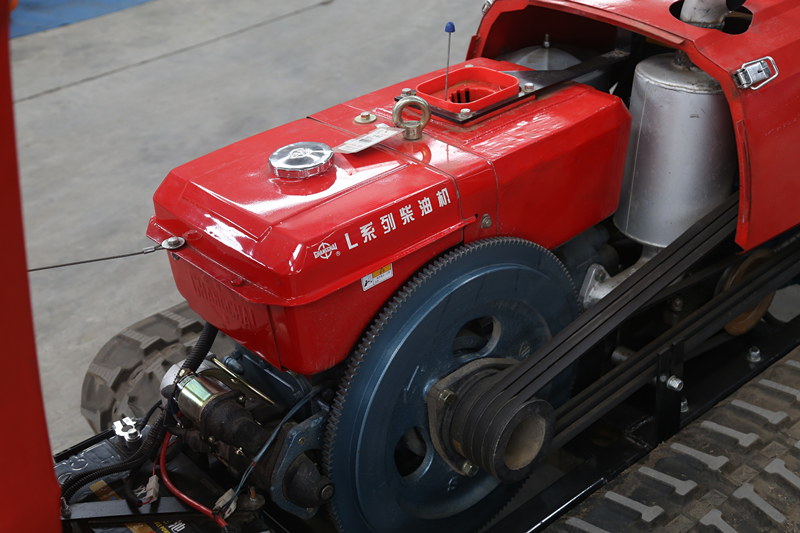

Model | NM-C80 | Engine | Changchai L32 diesel engine | Rubber track size | 230*72*43cm | |||||
Power | 23KW/32HP | Fuel consumption | 5.5L/h | Remote control distance | ≤200M | |||||
Gear | 3 forward gear 1 reverse gear | Transport Size | 290*110*100cm | Ground clearance | 28cm | |||||
Climbing | 30° | Weight | 800KG | Diesel tank capacity | 24L | |||||

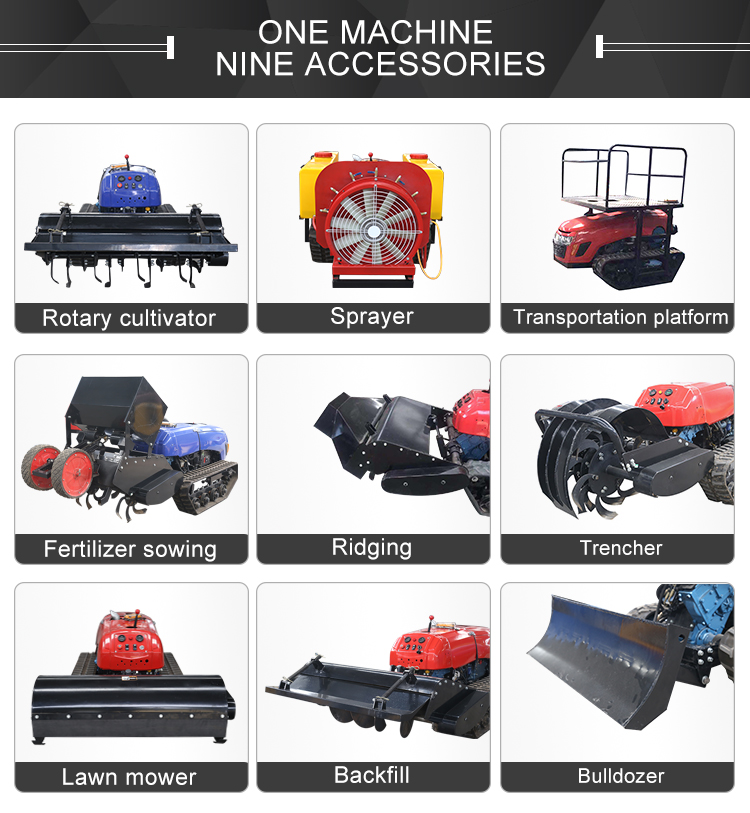

Optional Attachment
Attachment parameters

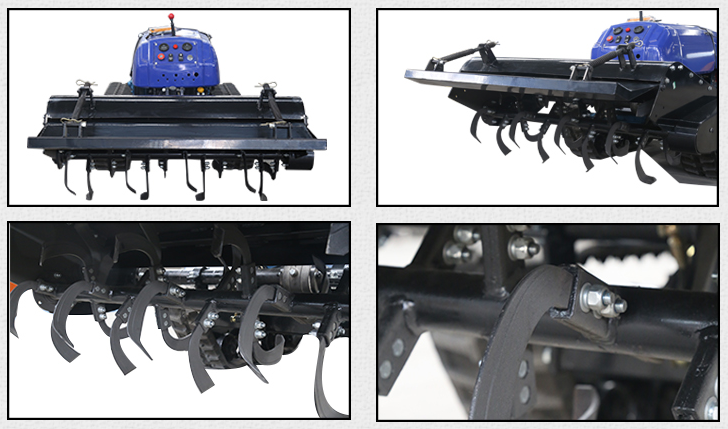

Rotary cultivator | ||||||
Quantity of blades | 28 | Type | Rotary knife type integral or split knife shaft | |||
Rotary tillage depth | 18cm | Rotary tillage width | 1.2m | |||
Rotating speed | 330 r/min | Blade material | 65 Model manganese steel | |||

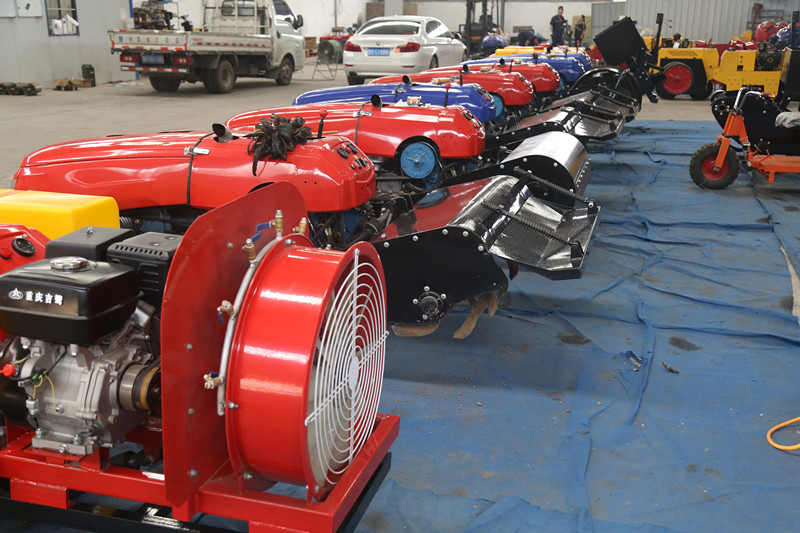

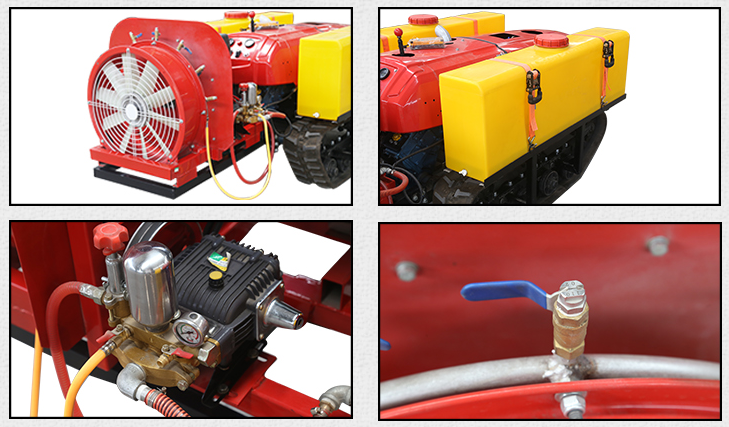

Sprayer | ||||||
Modus | Air spray | Spray radius | 6-7M | |||
Medicine box capacity | 320L( Two Medicine boxes) | Nozzle quantity | 7 | |||

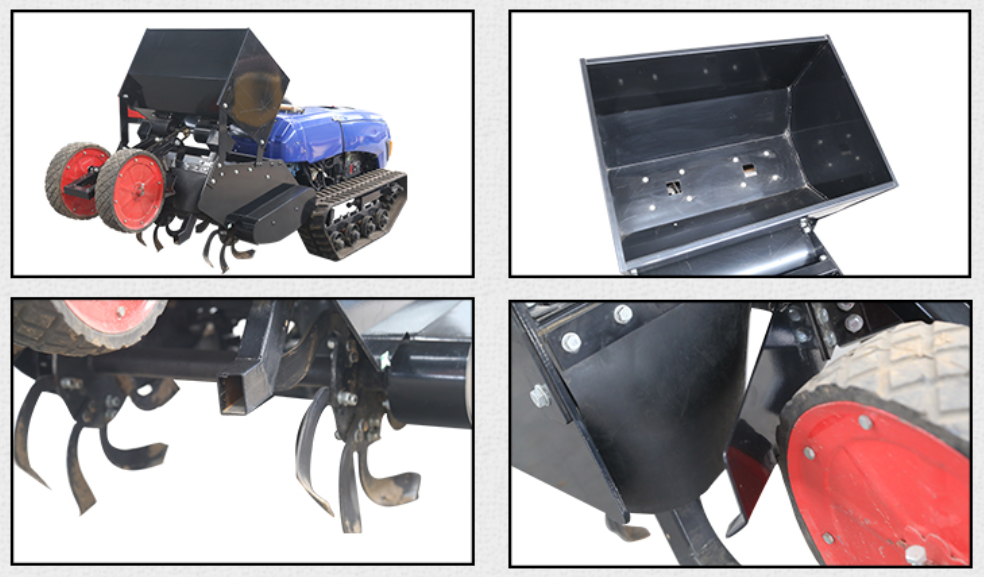

Fertilizer sowing | ||||||
Fertilizer sowing depth | 15cm-25cm | Box capacity | 150L | |||
Type | Integration of trenching, fertilization and backfilling | |||||

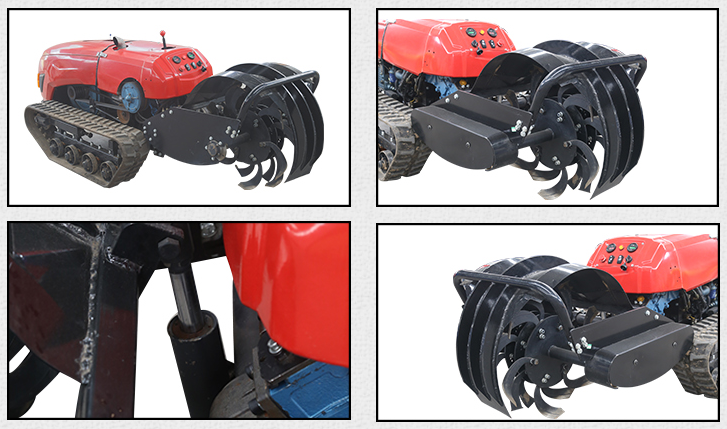

Trencher | ||||||
Blade material | 65 Model manganese steel | Type | Knife disc type | |||
Work efficiency | 800-1000 m/hour | Ridging depth | 25cm-30cm | |||
Rotating speed | 330 r/min | |||||

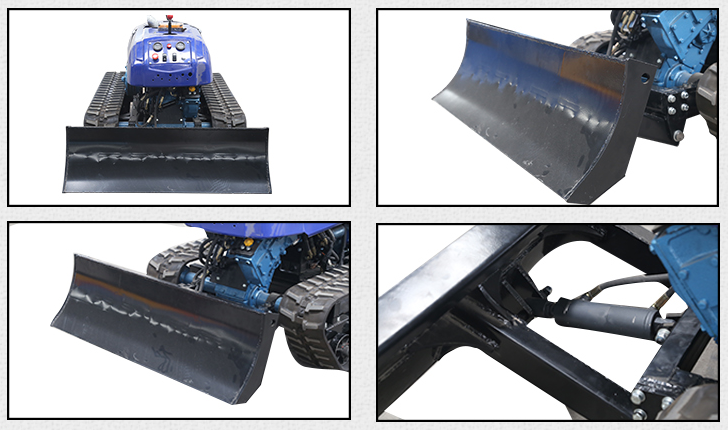

Bulldozer | ||||||
Width | 1.12m | Height | 36cm | |||

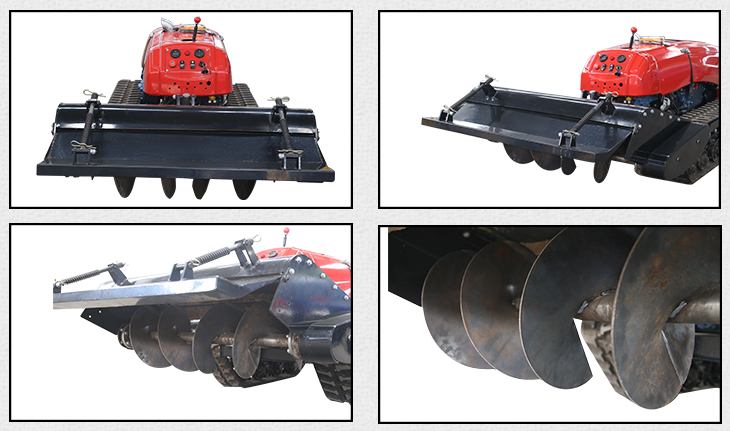

Backfill | ||||||
Type | Spiral type | Working width | 1m-1.2m（customizations） | |||
Rotating speed | 330 r/min | |||||
Lawn mower | ||||||
Type | Vertical knife | Mowing width | 120cm | |||
Stubble height | 5cm-10cm | Knife disc rotating speed | ||||
Ridging | ||||||
Ridge height | 20cm | Down ridge width | 70cm | |||
Up ridge width | 40cm | |||||

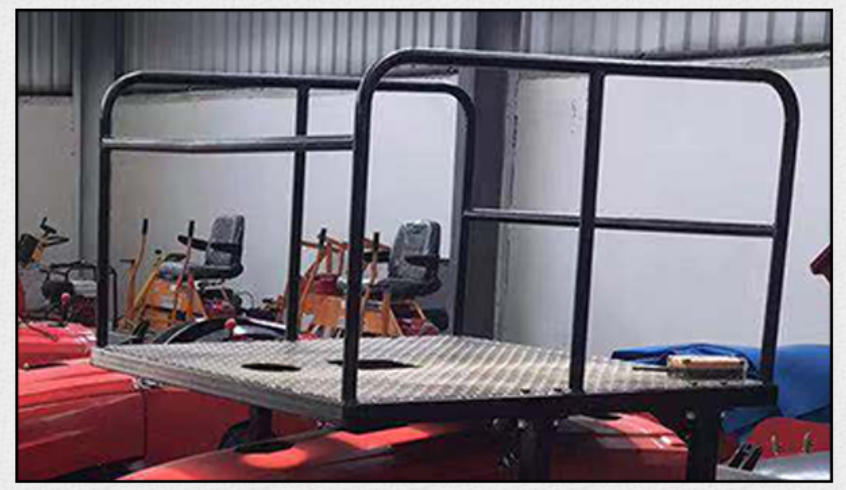

Transportation platform | ||||||
Platform area | 120cm*124cm | Ground clearance | 180cm | |||
Driving load | 500kg | |||||

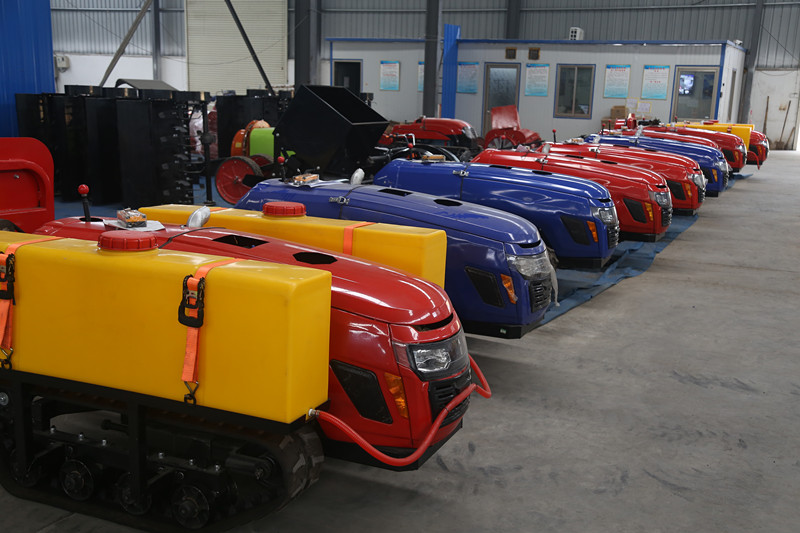

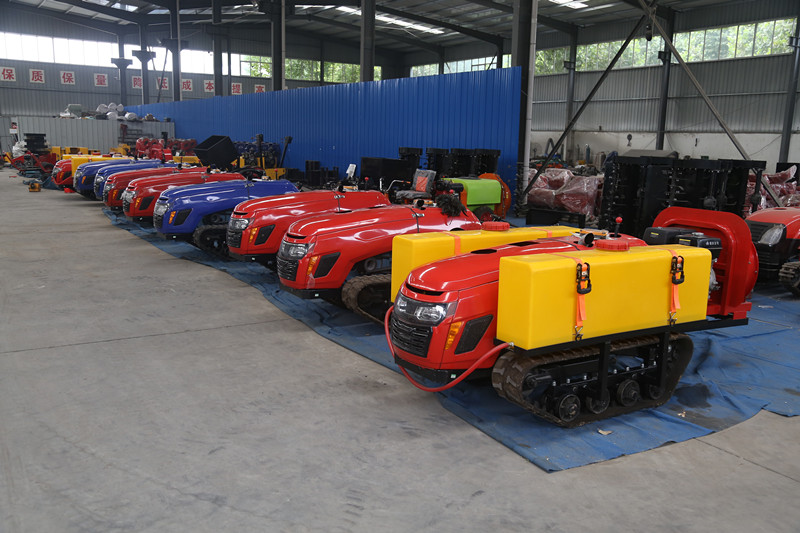

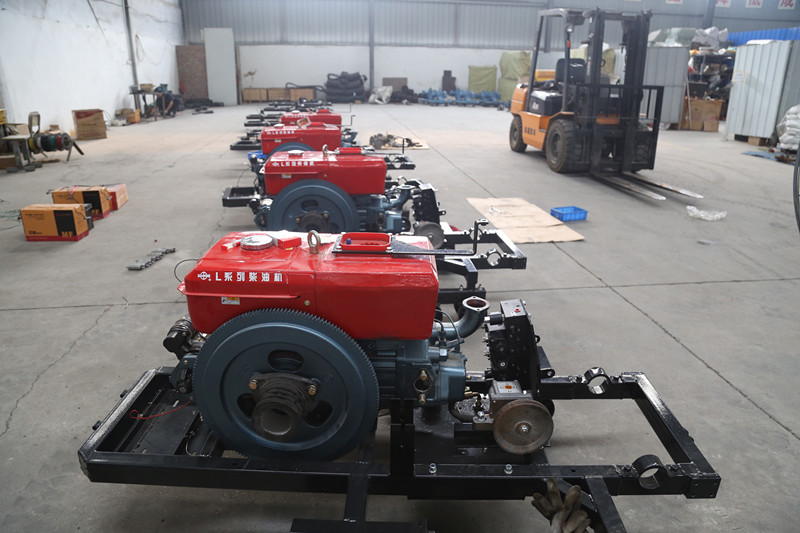

Stock and Display
